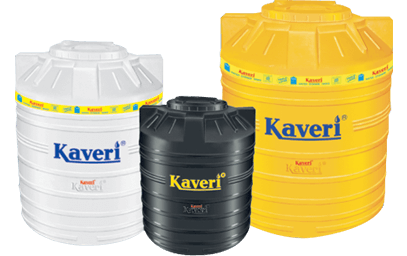

Kaveri Water Tank

Outdoor Application Water Tanks

akashdoot
Sl. No. Capacity in Litres Dimensions Hole size for fittings
Diameter
Inch
Height
Inch
Manhole Dia.
Inch
Inlet
Inch
Outlet
Inch
Overflow
Inch
1 200 28 26.4 11 1 1 1
2 300 28.9 32.1 11 1 1 1
3 500 33.9 40.2 15.7 1 1 1
4 750 37.8 43.1 15.7 1 ¼ 1 ¼ 1
5 1000 41.3 52 15.7 1 ¼ 1 ¼ 1
6 1500 47.8 54.7 15.7 1 ¼ 1 ¼ 1 ¼
7 2000 53 60.4 15.7 1 ¼ 1 ½ 1 ¼
8 2500 59.1 60 15.7 1 ¼ 1 ½ 1 ¼
9 3000 61 71.5 18.9 1 ¼ 1 ½ 1 ¼
10 4000 61 94.5 18.9 1 ¼ 1 ½ 1 ¼
11 5000 76 78.3 18.9 1 ¼ 1 ½ 1 ¼
12 6000 76 93.3 18.9 1 ¼ 1 ½ 1 ¼
13 7500 76 115.6 18.9 1 ¼ 1 ½ 1 ¼
14 10000 92.1 100.6 18.9 2 2 1 ½
15 15000 97.6 135.8 18.9 2 2 1 ½
16 20000 97.6 179.9 18.9 2 2 1 ½

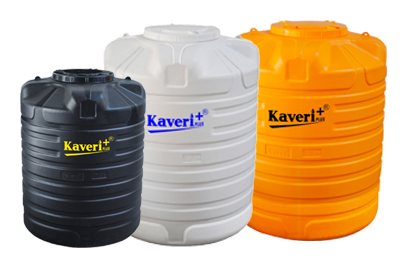

Kaveri Plus Water Storage Tanks
akashdoot
Sl. No. Capacity in Litres Dimensions Hole size for fittings
Diameter
Inch
Height
Inch
Manhole Dia.
Inch
Inlet
Inch
Outlet
Inch
Overflow
Inch
1 300 29.5 33 16.6 1 1 1
2 500 24.8 40.3 16.6 1 1 1
3 750 39.6 45.6 16.6 1 ¼ 1 ¼ 1
4 1000 43.5 49.8 16.6 1 ¼ 1 ¼ 1
5 1500 50.5 55.5 16.6 1 ¼ 1 ¼ 1 ¼
6 2000 53.5 65.6 16.6 1 ½ 1 ½ 1 ¼
Loft Tanks
akashdoot
Sl. No. Capacity in Litres Overall Dimensions Manhole
inch
length
inch
width
inch
height
inch
1 100 LTS 22 22 16.2 11.8
2 150 LTS 35.5 27 10.6 11.8
3 300 LTS 43.4 28.8 20.1 11.8
4 550 LTS 56 39.2 19.5 11.8
5 725 LTS 67.4 39.6 20.7 11.8
6 1000LTS 75.6 48.7 21.3 11.8
Household Drum
akashdoot
Sl. No. Capacity in Litres Overall Dimensions
Length
inch
Width
inch
Manhole
inch
1 100 LTS 27.8 17.6 11.8
2 150 LTS 34.3 19.7 11.8
3 200 LTS 38.2 21.3 11.8

Processing Trolley

akashdoot
Sl. No. Code Capacity in Litres Product Inner Dimensions
(Without Trolley)
Length Width Height
1 K48PT 480 910 760 760
2 K65PT 650 1210 760 770
3 K120PT 1200 1540 1095 775
Industrial Containers - Dosing Tank
akashdoot
Dimensions
Sl. No. Capacity
Litre
Diameter
mm
Height
mm
1 60 415 495
2 100 445 760
3 220 665 755
4 500 810 1090
5 1000 985 1535
6 2000 1450 1460
  • Available in WST Model upto 20,000 litres
  • Single Layer
  • Colours Available in:
    Black, Natural White
Heavy Duty Pallets
akashdoot
Dimensions
Sl. No. Length
mm
Width
mm
Height
mm
No. of legs
1 1000 1000 150 9
2 1200 1000 150 9
3 1200 1200 150 9
Capacity
Dynamic Static
700 Kg. 2000 Kg.

Plane Top Heavy Duty Pallets

akashdoot
Dimensions
Sl. No. Length
mm
Width
mm
Height
mm
No. of legs
1 1000 1000 150 9
Capacity
Dynamic Static
700 Kg. 2000 Kg.
Chemical Storage Tank
akashdoot
Sl. No. Capacity in Litres Dimensions Hole size for fittings
Diameter
Inch
Height
Inch
Manhole Dia.
Inch
Inlet
Inch
Outlet
Inch
Overflow
Inch
1 1000 41.3 52 15.7 1 ¼ 1 ¼ ½
2 1500 47.8 54.7 15.7 1 ¼ 1 ¼ 1 ¼
3 2000 53 60.4 15.7 1 ½ 1 ½ 1 ¼
4 2500 59 60 15.7 1 ½ 1 ½ 1 ¼
5 3000 61 71.5 18.9 1 ½ 1 ½ 1 ¼
6 4000 61 94.5 18.9 1 ½ 1 ½ 1 ¼
7 5000 76 78.3 18.9 1 ½ 1 ½ 1 ¼
8 6000 76 93.3 18.9 1 ½ 1 ½ 1 ¼
9 7500 76 115.6 18.9 1 ½ 1 ½ 1 ¼
10 10000 92.1 100.6 18.9 2 2 1 ½
11 15000 97.6 135.8 18.9 2 2 1 ½
12 20000 97.6 179.9 18.9 2 2 1 ½

E-Triveni Water Storage Tanks

akashdoot
Sl. No. Capacity in Litres Dimensions Hole size for fittings
Diameter
Inch
Height
Inch
Manhole Dia.
Inch
Inlet
Inch
Outlet
Inch
Overflow
Inch
1 500 33.4 36.6 15.7 ¾ ¾ ½
2 750 38.1 42.1 15.7 ¾ ¾ ½
3 1000 42.5 46.6 15.7 1 1 ¾
4 1500 47.6 57.8 15.7 1 1 ¾
5 2000 51.9 62.2 15.7 1 1 ¾
6 3000 61 70 18.9 1 ½ 1 ½ 1 ¼
7 5000 78 78 18.9 1 ½ 1 ½ 1 ¼
8 10000 89 94.8 18.9 1 ½ 1 ½ 1 ¼
